Federal Signal PSEMSC-RM Red Pull Switch with Momentary Connection
PSEMSC-RM|QF-PSEMSCRM
Federal Signal PSEMSC-RM Red Pull Switch with Momentary Connection
PSEMSC-RM|QF-PSEMSCRM
Federal Signal
Federal Signal PSEMSC-RM Red Pull Switch with Momentary Connection
PSEMSC-RM | QF-PSEMSCRM
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

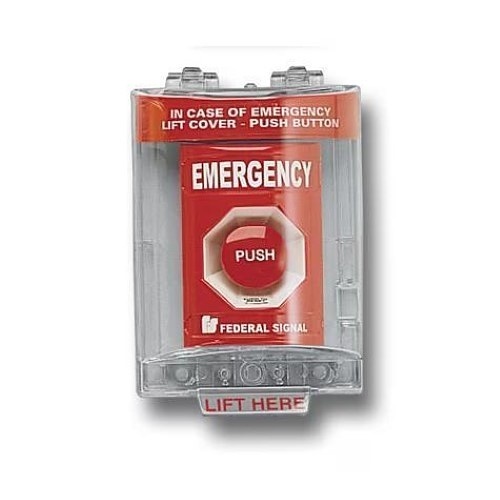

These multi-purpose, initiating devices cover a wide range of industrial and commercial applications. The Federal Signal push-button stations function like a traditional fire alarm "pull station", providing a simple latching contact closure or momentary contact to activate emergency equipment, audible and visual signals and alarm panels.Each unit is available with or without a tamper-resistant polycarbonate cover. Covered units work to protect against physical damage to the station and to prevent false alarms without restricting use in emergency situations. When the cover is lifted to gain access to the alarm, a piercing tone sounds, calling immediate attention to the area. The piezo horn is quiet once the cover is closed. Power to the piezo alarm is provided by a battery (included). The sounder cover mounts easily over the station.The terminal block provides easy installation and maintenance. Units mount on existing single-gang electrical boxes or 4"x 4" electrical boxes with plaster ring adapters (customer supplied). Contact ratings for the Push Button Stations are 600V AC at 3 amps and 250V DC at 1 amp.
Main Features
General Information
Name:Federal Signal PSEMSC-RM Red Pull Switch with Momentary Connection
Category:Federal Signal, Fire, Fire Pull Stations, Single Action Pull Stations
UPC Code:782979241621
Country of Origin:United States. Country of origin is subject to change.
Specifications
ADI Part Number QF-PSEMSCRM Brand Name Federal Signal Manufacturer Part Number PSEMSC-RM
Maximum Operating Temperature 120°F Minimum Operating Temperature 15°F
Depth 5.13" Height 8.15" Width 6"
Input Voltage 600V AC
Limited Warranty 5-Year
Environmental Certification UL Environmentally Friendly Yes Features "Evacuation" and "Emergency"stations available, ADA compliant, Cover with alarm discourages tampering, Latching contact or momentary activation depending on model, Quick reset
