Image of QF-302GCX024
Shop all Federal Signal

Federal Signal 302GCX-024 30W Amplifier Speaker, 24VAC/DC, Grey

302GCX-024|QF-302GCX024
Shop all Federal Signal

Federal Signal 302GCX-024 30W Amplifier Speaker, 24VAC/DC, Grey

302GCX-024|QF-302GCX024

Sign In for Dealer Pricing

Become an ADI Customer
Federal Signal

Federal Signal 302GCX-024 30W Amplifier Speaker, 24VAC/DC, Grey

302GCX-024 | QF-302GCX024

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

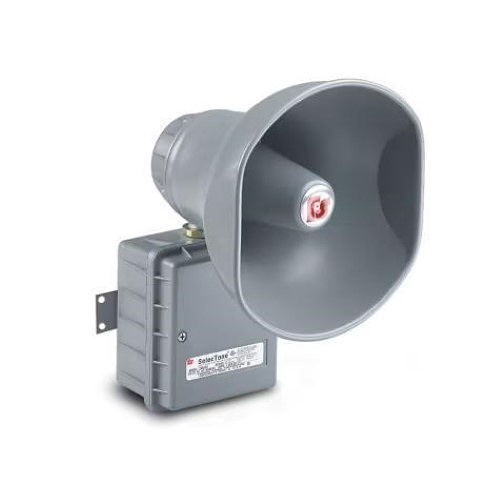

Model 302GCX SelecTone Amplified Speaker is designed to produce tones, digital voice messages and live public address in harsh environments with high ambient noise levels.The rugged speaker cone and projector are constructed of spun aluminum. The amplification circuitry, tone module, and gain control are contained in a housing constructed of die-cast aluminum. All surfaces are sealed with powder-coat paint. Dust- and moisture-proof gaskets provide protection from the elements.SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.For plant-wide signaling, a Connector Kit is installed into each SelecTone Amplified Speaker and wired to a central controller, SelecTone Command Unit or CommCenter Digital Message Center. Command Units and CommCenters broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.Applications for SelecTone include emergency warning, evacuation, start/dismissal, public address, and process control signaling.

Main Features

  • Available in 24V AC/DC, 120V AC and 240V AC
  • Reliable, solid-state circuitry
  • Digital signal amplification
  • Fused input and output
  • Built-in gain control, adjustable between 0 dBa to 114 dBa at 10' (0 dBa to 124 dBa at 1m)
  • Type 4X, IP66 enclosure
  • External mounting tabs
  • Indoor/outdoor use
  • UL and cUL Listed for Class I, Division 2, Groups A, B, C, and D- Class II, Division 2, Groups F and G- Class III, Division 2, Groups F and G- Class III

    • General Information

    Name:Federal Signal 302GCX-024 30W Amplifier Speaker, 24VAC/DC, Grey
    Category:Federal Signal, Fire, Fire Notification Devices, Speakers
    UPC Code:782979200871
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
    Manufacturer Brochure
    Certification / Declaration
