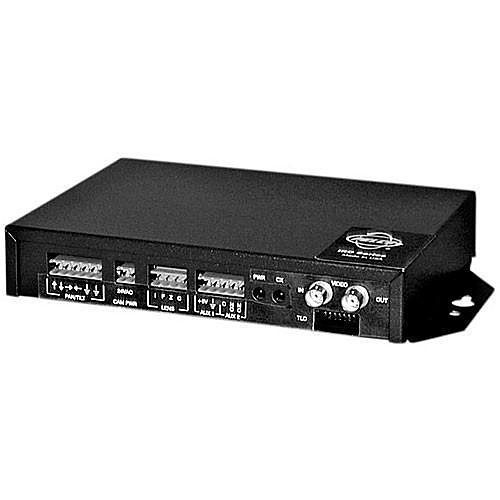

The IRD/ERD2000 Series receiver operates all of Pelco's fixed speed pan/tilts and domes. It replaces the non-preset models in the CX9000RX/RXI Series receiver. This receiver offers removable screw terminal connectors for quick and easy installation. Power and communication indicators are provided for troubleshooting purposes.

The IRD/ERD2000 Series works with standard and extended Coaxitron controllers, including the CM6700/6800,KBD9000,MPT9000/9500, and MX4000. With Coaxitron control, pan/tilt and lens control signals are transmitted over the video coaxial cable, saving wiring costs. The control data is superimposed on the vertical blanking interval of the video signal.

Standard features include pan/tilt control (including auto and random scan), camera power, lens control (zoom, iris, and focus),and two auxiliary outputs. The receiver also can be used with the LRD41TLC test local control module, which allows on-site testing and troubleshooting of system functions.
