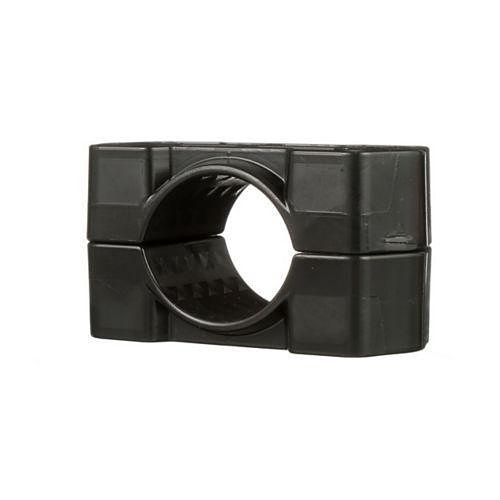

Image of P9-PL2H7083X
Shop all Panduit

Panduit CCPL2H7083-X Cable Cleat, 2-Hole Clamp Type, Polymer

CCPL2H7083-X|P9-PL2H7083X
Shop all Panduit

Panduit CCPL2H7083-X Cable Cleat, 2-Hole Clamp Type, Polymer

CCPL2H7083-X|P9-PL2H7083X

Sign In for Dealer Pricing

Become an ADI Customer

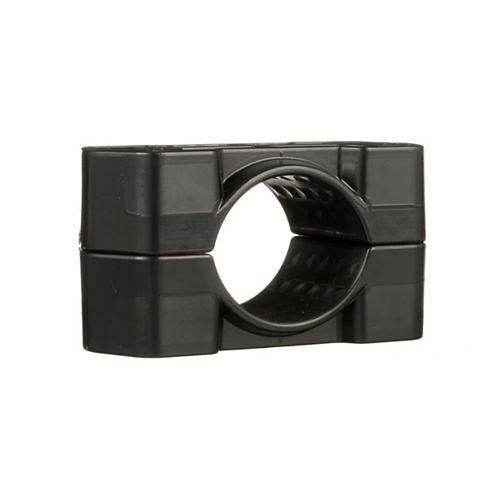

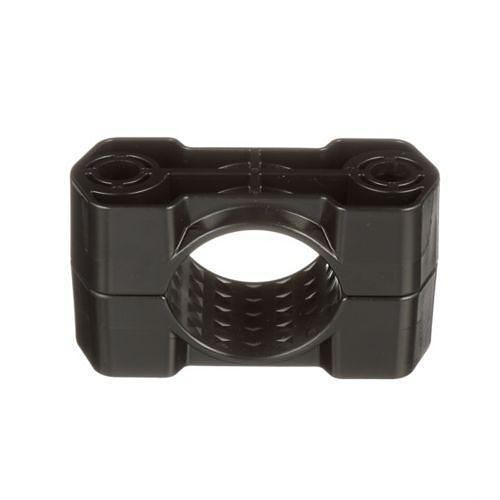

Image of P9-PL2H7083X
Panduit

Panduit CCPL2H7083-X Cable Cleat, 2-Hole Clamp Type, Polymer

CCPL2H7083-X | P9-PL2H7083X

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The CCPL2H7083-X Polymer Two-Hole Cable Cleat is ideal for lower to medium short circuit faults in less harsh environments. The cable cleat is certified to IEC 61914;2015, tested up to 85.4 kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 70-83mm and installs direct to the cable tray rung via fixing holes and two user-supplied M10 bolts. Features glass filled nylon material and rounded edges for cable insulation protection.

Main Features

  • Certified to IEC 61914;2015
  • Tested up to 85.4 kA peak fault current
  • Compatible with cable diameter of 70-83mm
  • Two-hole clamp type installation
  • Installs direct to cable tray rung via fixing holes
  • Requires two user-supplied M10 bolts
  • Made of glass filled nylon polymer material
  • Rounded edges for cable insulation protection

    • General Information

    Name:Panduit CCPL2H7083-X Cable Cleat, 2-Hole Clamp Type, Polymer
    Category:Panduit, Tools & Hardware, Tools, Clips & Clamps
    UPC Code:613056733053
    Country of Origin:. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Installation Instructions
    Manufacturer Brochure
    Additional Resources
