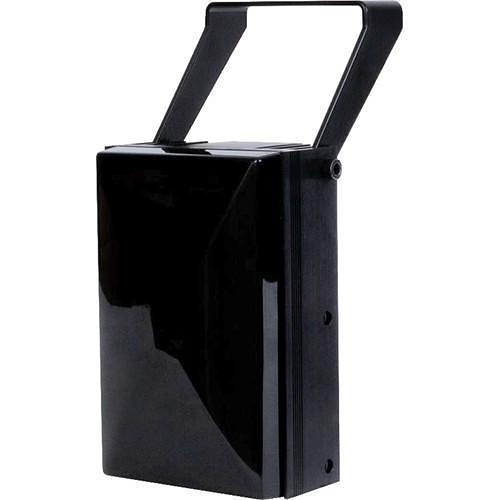

iluminar IR623-A60-POE-2 850nm 246 Hi-Power
IR623-A60-POE-2 | IP-IR623A6P
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Product Features
- Long range IR illuminator
- SMT LED technology
- Distances up to 623' (190m)
- Angles 10o , 30o , 60o , 100 o & 120o
- 850nm or 940nm Wavelengths
- Low power consumption (36W)
- Long life
- 5 yearwarranty
- IP67 weatherproof rating
- Built-in photocell IR on/off
- Telemetry input for remote switching
- High Power PoE power
Active or near infra-red (NIR) illumination is energy which is invisible to the human eye but can be seen by a high quality true day/night camera (IR cut filter removed). The energy from IR illuminators resides just outside the visible red section of the electromagnetic spectrum, above 700nm and below 1000nm.
IR illumination is an ideal source of illumination for security cameras for the following reasons.
- It is invisible to the human eye but visible to black/white and true day/night cameras.
- Avoids the problem of light pollution.
- Longer range than visible light All Iluminar illuminators provide superior IR lighting for video surveillance systems. They are available with a range of angles to cover different distances and scenes.
Supplied with an IP67 rating, they are vandal proof and can be used indoors and outdoors. The anodized aluminum housing provides protection from the harshest weather conditions
Main Features
General Information
Name:iluminar IR623-A60-POE-2 850nm 246 Hi-Power
Category:iluminar, Video Surveillance, Video Accessories, Illuminators
UPC Code:818112020720
Country of Origin:United Kingdom. Country of origin is subject to change.
Specifications
ADI Part Number IP-IR623A6P Brand Name iluminar Manufacturer Part Number IR623-A60-POE-2 Product Name Long Range IR Illuminator Product Series IR623-PoE-2 Product Type Infrared Illuminator
Material Aluminum, PC
Depth 3" Durability Vandalproof, Weatherproof Width 4"
Country of Origin GB Features Low Power Consumption, PoE, Robust, SMT LED Technology, Wall Mountable Indoor/Outdoor Indoor, Outdoor
