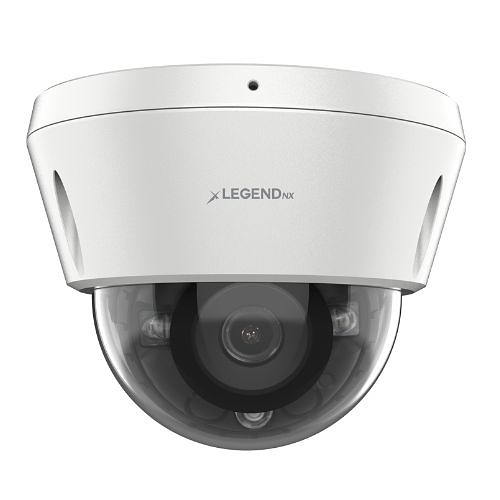

Inaxsys LGNXDO5IRTF 5.1MP Dome HDTVI Camera, 2.8mm Fixed Lens
LGNXDO5IRTF
|IN-NXDO5IRTF
Shop All Inaxsys Security Systems
Inaxsys LGNXDO5IRTF 5.1MP Dome HDTVI Camera, 2.8mm Fixed Lens
LGNXDO5IRTF | IN-NXDO5IRTF
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This camera offers 5MP high-resolution imaging with a 2.8mm fixed lens, providing clear visuals even in low-light conditions with up to 30m infrared distance. It features DWDR and 2D DNR for enhanced clarity, supports multiple video formats, and is IP67-rated for water and dust resistance, with a built-in microphone for high-quality audio.
Main Features
- 5MP High-Resolution Imaging
- DWDR and 2D DNR for Better image clarity
- Supports TVI, AHD, CVI, CVBS
- Water and dust resistant (IP67)
- Built-in microphone for clear audio over coaxial cable
General Information
Name: Inaxsys LGNXDO5IRTF 5.1MP Dome HDTVI Camera, 2.8mm Fixed Lens
Category: Inaxsys Security Systems, Video Surveillance, HDoC Cameras, Dome Cameras
UPC Code: 685225309116
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number IN-NXDO5IRTF Brand Name Inaxsys Security Systems Manufacturer Part Number LGNXDO5IRTF
Effective Camera Resolution 5MP Field of View Diagonal, Horizontal, Vertical Maximum Aperture f/1.2 Maximum Frame Rate 20.0fps Night Vision Yes Night Vision Type Infrared (IR) Wide Dynamic Range Yes
Image Sensor Type CMOS
Ingress Protection Rating IP67
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 140.00°F Minimum Operating Temperature -40.0°F Operating Humidity 0.95
Longest Shutter Speed 1/50 Second Shortest Shutter Speed 1/150000 Second
Focal Length 2.8mm Lens Included Yes Maximum Focal Length 2.80mm
Form Factor Dome
Input Voltage 12V DC
Diameter 4.00"
