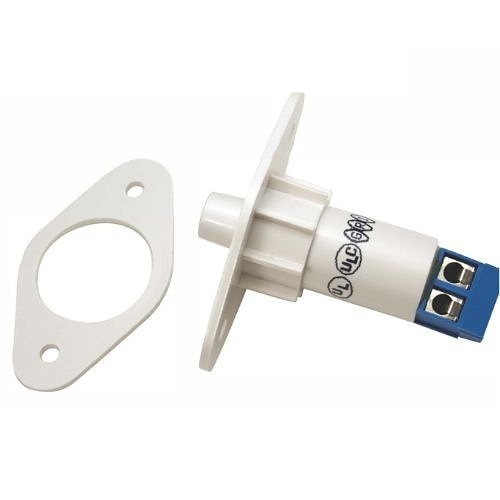

GRI PBF-101T-B Open Push Button Plunger with Terminal, 3/4" (D), Brown

PBF-101T-B | GI-PBF101TBR

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The push button or plunger actuated PB series was developed as a direct replacement of an existing and problematic mechanical type contact. The PBF flange push button can be installed without re-drilling or redesigning the original installation. The sealed contacts of the reed switch insure a long service life. Plunger actuated reed switches have become so popular on new installations that many variations are now being produced. The PB-100 is a press fit design and eliminates the screw mounted flange. A terminal connection is offered on most models and this option can be added by including a T at the end of the part number - for example PB-100-T.

Main Features

  • Recessed magnetic contact
  • PBF is 0.7" x 1.5" with screw down flange
  • PB is 0.56" press fit
  • Adjustable screw plunger, travel distance total .270, pre-travel is .090 ± .040
  • 12" 22AWG leads or screw terminals
  • Longer leads, zip cords or jacketed cable upon request
  • Hermetically sealed
  • Plated contacts resist sticking or freezing
  • Spacers and mounting hardware included
  • Built-in E.O.L. Resistors and Diodes upon request

    • General Information

    Name:GRI PBF-101T-B Open Push Button Plunger with Terminal, 3/4" (D), Brown
    Category:George Risk Industries, Intrusion, Alarm Contacts, Plunger & Toggle Switches
    UPC Code:697625023073
    Country of Origin:United States. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
