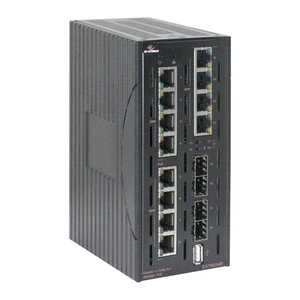

EtherWAN EX78934R-0VB EX78900R Series Hardened Managed 16-Port Gigabit PoE Ethernet Switch, 12 PoE Ports, 4 SFP, 240W
EX78934R-0VB
|ET-78934R0VB
Shop All EtherWAN
EtherWAN EX78934R-0VB EX78900R Series Hardened Managed 16-Port Gigabit PoE Ethernet Switch, 12 PoE Ports, 4 SFP, 240W
EX78934R-0VB | ET-78934R0VB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
EtherWAN's EX78900R series is a hardened managed PoE Ethernet switch platform. Equipped with 12 gigabit PoE ports along with 60W power and IEEE 802.3.bt protocol support and 4 dual-rate gigabit SFP ports, the EX78900R series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.
Specifications
ADI Part Number ET-78934R0VB Brand Name EtherWAN Manufacturer Part Number EX78934R-0VB
Material Aluminum Power Consumption 20W
Manageable Yes
Networking Standards IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ADI Part Number Replaces ET-EX78162R0 Model Number Replaces EX78162R-0MB
Depth 5.5" Height 6.7" Width 2.8"
Input Voltage 52-57V DC PoE Budget 240W Power Source PoE
Limited Warranty Lifetime Warranty
Environmental Certification FCC Environmentally Friendly Yes Features 12 gigabit PoE ports, total 240W PoE power budget, Hardened-grade for non-ventilated and harsh environments, PoE watchdog monitors status of connected PoE devices, Supports static routes, RIP v1/v2, and VRRP Package Contents 1 Console Cable, Ethernet Switch, Quick install guide
