Camden CM-1010-7224-60KA Surface Mount Key Switch, SPST
CM-1010-7224-60KA|CM-101072246
Camden CM-1010-7224-60KA Surface Mount Key Switch, SPST
CM-1010-7224-60KA|CM-101072246
Camden Door Controls
Camden CM-1010-7224-60KA Surface Mount Key Switch, SPST
CM-1010-7224-60KA | CM-101072246
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

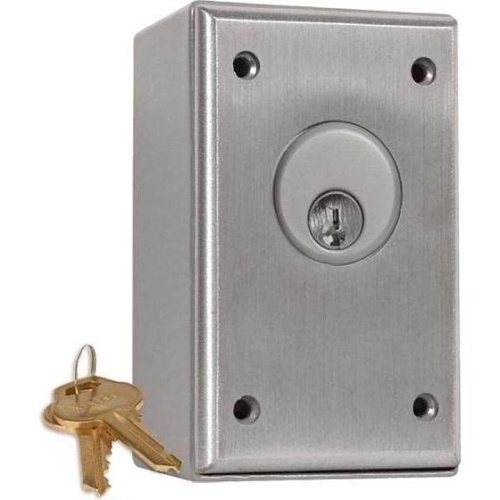

Camden CM-1000 key switches offer a vandal resistant 0.25" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 0.5" threaded conduit opening for wall, pipe, or pedestal mounting.
Main Features
General Information
Name:Camden CM-1010-7224-60KA Surface Mount Key Switch, SPST
Category:Camden Door Controls, Access Control, Locking Devices, Key Switches
UPC Code:
Country of Origin:Canada. Country of origin is subject to change.
Specifications
ADI Part Number CM-101072246 Brand Name Camden Door Controls Manufacturer Part Number CM-1010-7224-60KA
Maximum Operating Temperature 85°F Minimum Operating Temperature 32°F
Input Voltage 30V DC
Contact Type SPST
Limited Warranty 3-Year
Features Accepts standard mortise cylinders (1" - 1-1/4"), Color coded 18 AWG soldered leads, Cylinder sits flush to faceplate, Heat shrink protective sleeve over contacts, Heavy duty 1/4" thick aluminum plate, No set screws required, Supplied with heavy duty diecast surface box, Tamper proof screws and driver provided
