AV Pro Edge AC-MXNET-SW48 MXNet 1G Series 48-Port Managed Network Switch with POE, Layer 3, Black

AC-MXNET-SW48 | 8A-ACMXNEW48

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

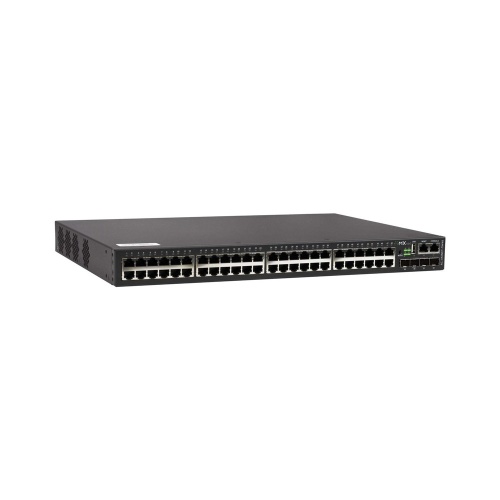

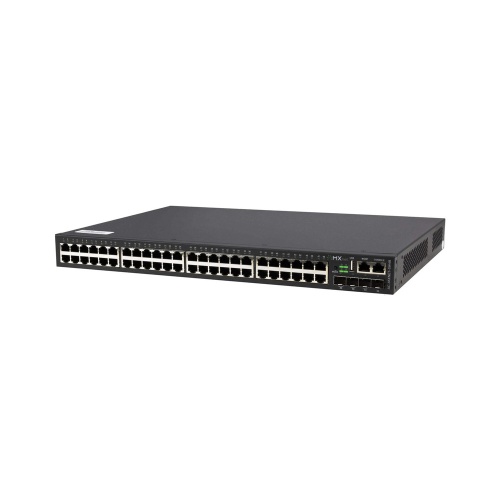

The MXNet 48 port network switch by AVPro Edge serves as the central hub for the MXNet Ecosystem, designed for high-performance A/V distribution systems. It features a full 48-port POE+ with 740 W power, including four 10GB SFP+ fiber ports for stacking, and utilizes AVPro Edge's proprietary network operating system (NOS) optimized with Intelligent A/V Processing (IAVP) technologies. The switch achieves fast source switching times under 2 seconds and maintains low latency under 40 ms, supporting advanced A/V formats such as HDR and Dolby Vision metadata. Factory pre-configured and optimized for multicast A/V performance, it operates quietly and complies with multiple certifications including UL Listed, CE, and FCC standards.

Main Features

  • 48 port POE+ with 740 W power budget
  • Four 10GB SFP+ fiber ports for stacking
  • Switching time less than 2 seconds
  • Latency less than 40 ms
  • Quiet operation
  • AVPro Edge developed NOS with optimized multicast A/V firmware
  • Intelligent A/V Processing (IAVP) for efficient multicast routing
  • Factory pre-configured and optimized for A/V use
  • Compliance with UL, CE, FCC Part 15 Subpart B, ANSI C63.4-2014, EN 55032:2015+A11:2020
  • Certified to EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55035:2017+A11:2020, EN

    • General Information

    Name:AV Pro Edge AC-MXNET-SW48 MXNet 1G Series 48-Port Managed Network Switch with POE, Layer 3, Black
    Category:AV Pro Edge, Data Comm & Networking, Pro AV, Hubs, Routers & Switches, Commercial Video Signal Distribution, Network Switches, Pro AV Switches
    UPC Code:850015330322
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    Installation Instructions
