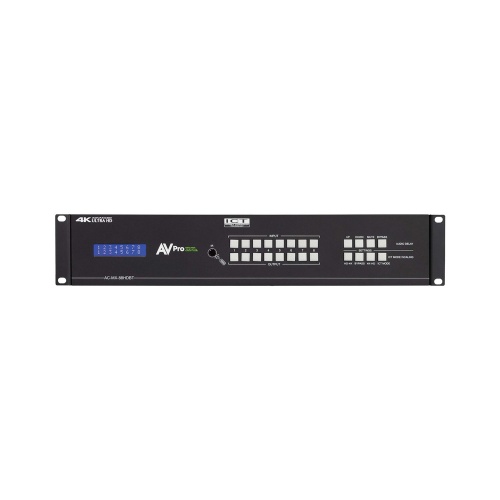

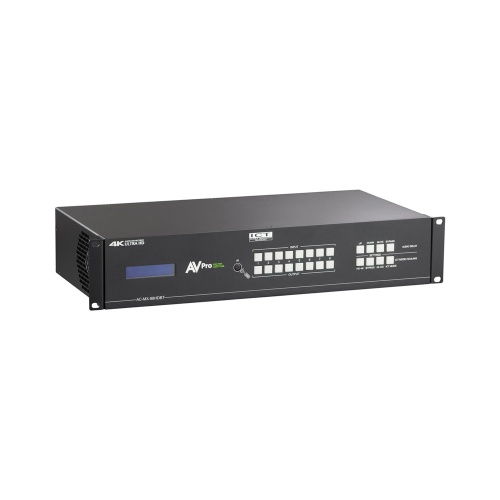

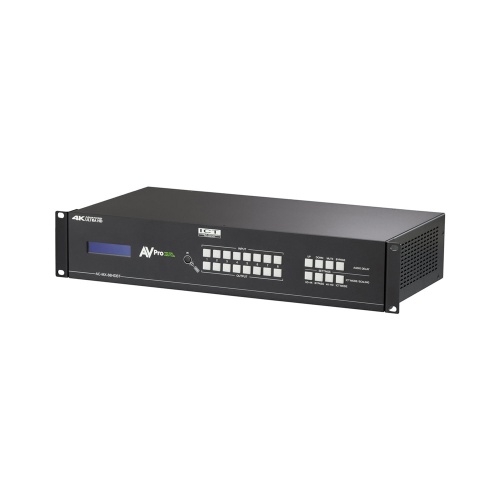

AV Pro Edge AC-MX-88HDBT 8x8 HDMI/HDBaseT Matrix Switcher, 4K60, PoE, HDR

AC-MX-88HDBT | 8A-ACMX88HDB

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AC-MX-88HDBT is an 8x8 HDMI/HDBaseT matrix switch designed to route multiple HDMI sources to multiple displays efficiently. It includes 8 HDMI inputs and outputs with HDBaseT and HDMI ports, supporting HDMI 2.0 (a/b), HDCP 2.3, 4K60 4:4:4 resolution, and 18 Gbps bandwidth through Category cable using proprietary ICT technology. The matrix features on-board audio delay for lip-sync adjustments, built-in scalers for 4K to 1080p downscaling, and full EDID management for compatibility with diverse sources and displays. Control options encompass IR, RS232, and LAN, with audio extraction in multiple modes and support for Crestron, C4, RTI, and ELAN systems. This switch is CE certified, RoHS compliant, and includes a built-in test pattern on each output for infrastructure verification.

Main Features

  • 8x8 HDMI/HDBaseT matrix switch with 8 HDMI inputs and 8 HDMI/HDBaseT output blocks
  • Supports HDMI 2.0 (a/b) and HDCP 2.3 with up to 4K60 4:4:4 video resolution
  • 18 Gbps uncompressed bandwidth on HDMI and HDBaseT outputs with ICT technology
  • Full HDR support including HDR10, 12-bit, Dolby Vision, HDR10+, and HLG
  • 1080p to 4K upscaling on HDMI outputs and 4K to 1080p downscaling on HDBaseT outputs
  • Advanced EDID management for diverse sources and displays
  • Includes IR, RS232, and LAN control options
  • Audio features: digital Toslink out (7CH PCM, DD, DTS), balanced analog out (2CH PCM), onboard
  • HDBaseT compatibility mode for mixed systems and built-in test pattern on each output
  • Driver support for Crestron, Control4, RTI, ELAN, and more

    • General Information

    Name:AV Pro Edge AC-MX-88HDBT 8x8 HDMI/HDBaseT Matrix Switcher, 4K60, PoE, HDR
    Category:AV Pro Edge, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Matrix Switches, Pro HDMI Switchers
    UPC Code:859762007518
    Country of Origin:China. Country of origin is subject to change.
