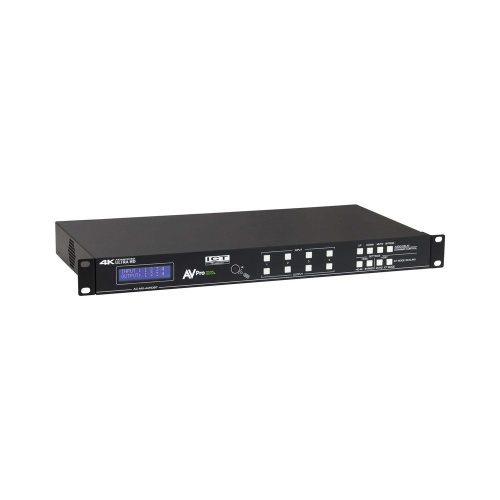

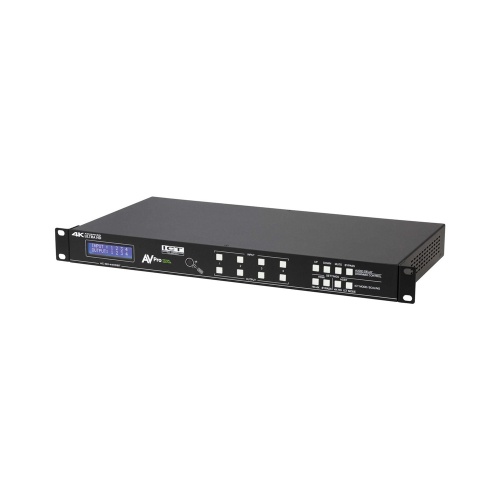

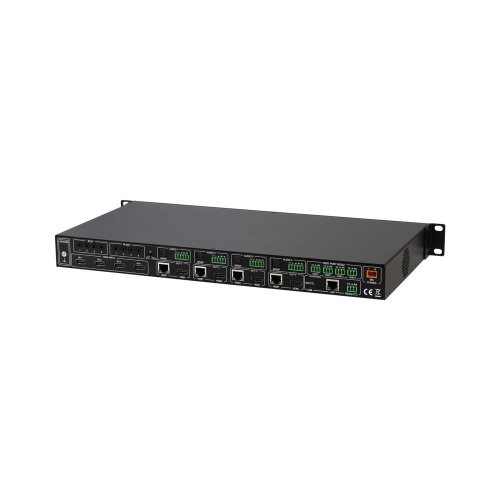

AV Pro Edge AC-MX-44HDBT 4x4 HDMI/HDBaseT Matrix Switcher, 4K60, PoE, HDR

AC-MX-44HDBT | 8A-ACMX44HDB

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AC-MX-44HDBT is a 4x4 HDMI/HDBaseT matrix switch designed to route any source to multiple displays with high fidelity. It supports HDMI 2.0 (a/b), HDCP 2.2, and up to 4K60 4:4:4 video resolution at 18 Gbps uncompressed bandwidth, including an 18 Gbps HDBaseT output employing proprietary ICT technology. The matrix features mirrored HDMI and HDBaseT output blocks with built-in scalers for 4K to 1080p downscaling, full HDR (HDR10, Dolby Vision, HDR10+, HLG) support, and advanced EDID management for maximum source and display compatibility. Audio functionality includes digital Toslink and balanced analog outputs with audio delay for lip-sync correction. Control options include IR, RS232, LAN, and it supports integration with Crestron, C4, RTI, and ELAN systems. The unit is CE certified and RoHS compliant.

Main Features

  • 4x4 HDMI/HDBaseT matrix switch with mirrored active HDBaseT and HDMI output ports
  • Supports HDMI 2.0 (a/b) and 18 Gbps uncompressed bandwidth on HDMI
  • ICT technology enables 18 Gbps bandwidth on HDBaseT outputs
  • 4K60 4:4:4 video resolution support with full HDR (HDR10 and 12 bit)
  • Supports Dolby Vision, HDR10+, HLG, and HDCP 2.2 plus earlier versions
  • 1080p to 4K upscaling on HDMI outputs and 4K to 1080p downscaling on HDBaseT outputs
  • Advanced EDID management and built-in audio delay for lip-sync adjustment
  • Multiple control options including IR, RS232, and LAN
  • Digital Toslink output (7CH PCM, DD, DTS) and balanced analog output (2CH PCM)
  • Compatibility mode for mixed HDBaseT systems and driver support for major control systems

    • General Information

    Name:AV Pro Edge AC-MX-44HDBT 4x4 HDMI/HDBaseT Matrix Switcher, 4K60, PoE, HDR
    Category:AV Pro Edge, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Matrix Switches, Pro HDMI Switchers
    UPC Code:859762007495
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Installation Instructions
    Additional Resources
