AV Pro Edge AC-MAX-24 Audio Matrix Switcher, 24 Inputs, 24 Outputs, DSP, IP Control

AC-MAX-24 | 8A-ACMAX24

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

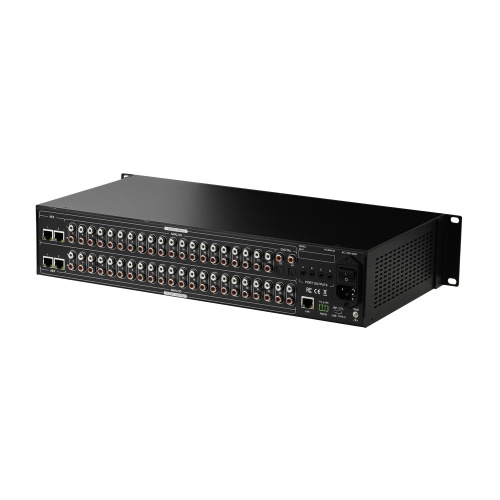

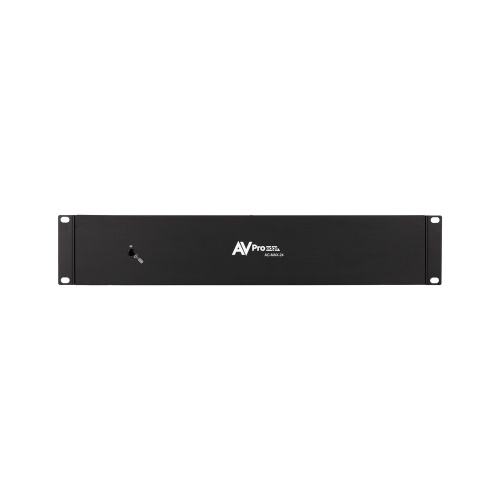

The AC-MAX-24 is a two-channel audio matrix switcher designed for distributed audio needs in both residential and commercial settings. It offers 24 total inputs and outputs, including 20 analog pairs, two Coaxial/Toslink digital inputs, and two convertible AEX analog/digital receivers and transmitters supporting distances up to 130 meters over Shielded Twisted Pair. The device supports full customization via an AVPro Edge-developed GUI and comprehensive API, allowing adjustments of volume, balance, tone, and equalization. It is compatible with all major automation providers such as Crestron, Control4, and Savant, and includes four 12V triggers for amplifier or event control, providing flexible integration and connectivity options.

Main Features

  • Twenty-four total input channels including 20 analog input pairs and 2 coaxial/Toslink digital
  • Twenty-four total output channels including 22 analog output pairs and 2 AEX analog/digital
  • Built-in dual AEX analog/digital receivers and transmitters for decentralized sources with up to
  • Compatible with any amplifiers and controlled by major automation systems via IP including
  • Comprehensive API and AVPro Edge GUI for fully customizable signal routing and audio parameter
  • Four 12V trigger outputs for amplifier control or custom event triggers
  • Rack-mountable 2U design with included mounting brackets and hardware
  • Supports independent channel volume, balance, tone adjustment, and equalization

    • General Information

    Name:AV Pro Edge AC-MAX-24 Audio Matrix Switcher, 24 Inputs, 24 Outputs, DSP, IP Control
    Category:AV Pro Edge, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Matrix Switches, Pro HDMI Switchers
    UPC Code:810108230113
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
