AV Pro Edge AC-CXWP-HDMO-BKT Basic HDMI Wall Plate Transmitter / Receiver Kit, Single-Gang, Low Heat

AC-CXWP-HDMO-BKT | 8A-ACCXMOBKT

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

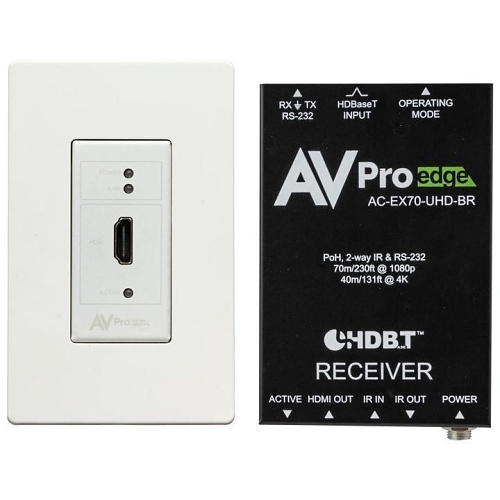

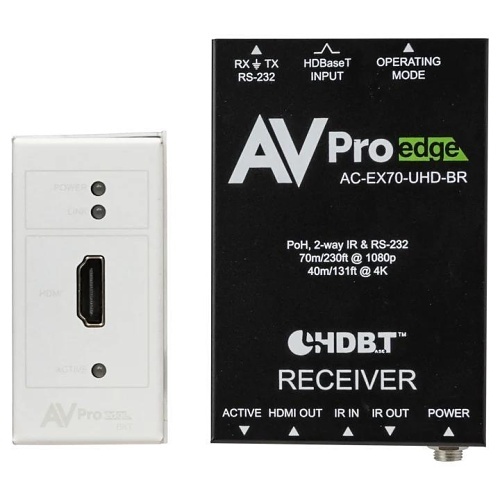

The ConferX wall plate transmitter from AVPro Edge is designed as an HDBaseT wall plate transmitter/receiver kit for HDMI extension, suitable for single office settings, home theaters, and conference rooms. It supports 4K at 10.2 Gbps with HDMI 2.0 (a/b) capability and extends 4K up to 40 m and 1080p up to 70 m using Cat6A cable. The single gang transmitter fits standard mud rings and wall plate covers, requires no local power, and includes a rear RJ45 receptacle for straightforward installation. Compatible with HDBaseT displays and supporting uncompressed PCM and advanced Dolby and DTS audio formats, it features a rugged, low-heat chassis and is CE certified, RoHS compliant, and carries a Prop65 warning.

Main Features

  • Supports HDMI 2.0 (a/b)
  • Handles 4K30 4:4:4 and 4K60 4:2:0 HDMI signals
  • Supports DCI 2K, 1080p, 1920x1080x60 VGA resolutions
  • Compatible with HDCP 2.2 and earlier
  • Extends video up to 70 m on 1080p and 40 m on 4K using Cat6A cable
  • Powered via AC-EX70-UHD-BR, no local power needed at wall plate

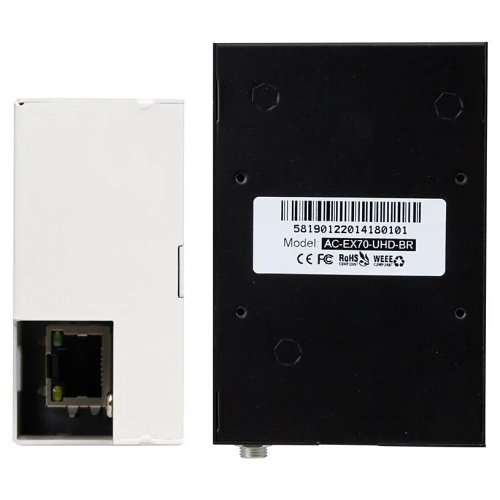

  • Single gang, low heat, straight rear RJ45 receptacle design
  • Rugged, long-life chassis
  • Plug and play auto input sensing
  • Uses single UTP/STP LAN cable (Cat6A) for all signals

    • General Information

    Name:AV Pro Edge AC-CXWP-HDMO-BKT Basic HDMI Wall Plate Transmitter / Receiver Kit, Single-Gang, Low Heat
    Category:AV Pro Edge, Pro AV, Commercial Audio, Pro Wall Plates
    UPC Code:850001710114
    Country of Origin:China. Country of origin is subject to change.
