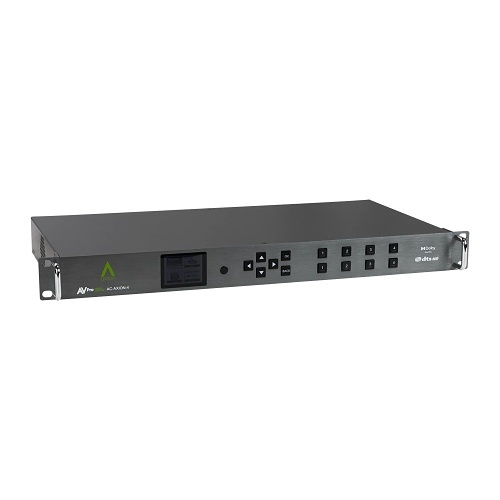

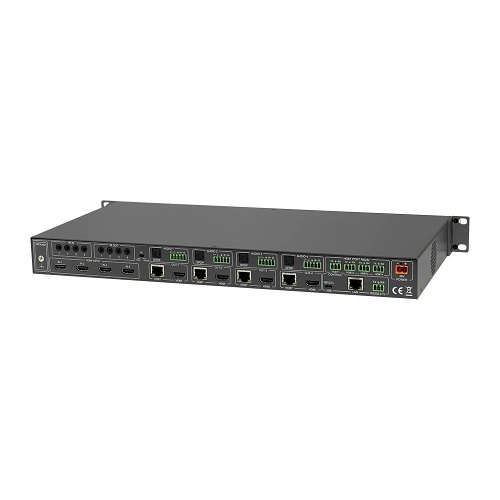

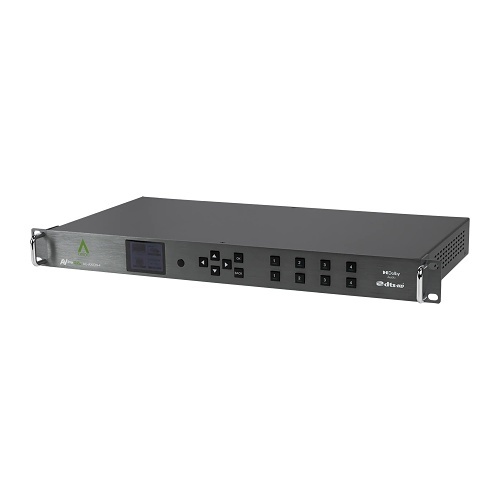

Image of 8A-ACAXION4
Shop all AV Pro Edge

AV Pro Edge AC-AXION-4 AXION Series 4x4 HDMI Matrix Switcher

AC-AXION-4|8A-ACAXION4
Shop all AV Pro Edge

AV Pro Edge AC-AXION-4 AXION Series 4x4 HDMI Matrix Switcher

AC-AXION-4|8A-ACAXION4

Sign In for Dealer Pricing

Become an ADI Customer
AV Pro Edge

AV Pro Edge AC-AXION-4 AXION Series 4x4 HDMI Matrix Switcher

AC-AXION-4 | 8A-ACAXION4

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AC-AXION-4 is a high bandwidth audio/video matrix switcher designed for complex AV installations. It supports downmixing of bitstream audio beyond 7.1 channels, including Dolby Atmos and DTS-X, into a 2-channel audio signal across four inputs while maintaining full Dolby Atmos and DTS HD audio through mirrored HDMI/HDBaseT ports. The matrix supports the full HDMI 2.0 a/b specification and all HDR formats including HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK in up to 4K 60Hz and 12-bit deep color. Featuring advanced capabilities such as extreme EDID management, built-in 4K to 1080p downscaling, and dual audio de-embedding with volume control, it offers comprehensive control via the Axion Interface and front panel screen for easy setup and management in multi-zone environments.

Main Features

  • Supports downmixing beyond 7.1 channel and Dolby Atmos, DTS-HD to 2-channel audio
  • Supports 18Gbps bandwidth for high-quality transmission
  • Compliant with HDMI 2.0 a/b and supports all HDR formats including HDR10, HDR10+, Dolby Vision, HLG
  • Built-in 4K to 1080p downscaling on each HDBaseT output
  • Features advanced EDID management with 29 onboard EDIDs and instant EDID reading from displays
  • Includes four mirrored HDMI/HDBaseT ports allowing full Dolby Atmos and DTS HD distribution
  • Dual audio de-embedding with four digital optical Toslink outputs supporting 7CH LPCM, Dolby
  • Volume control for each de-embedded audio output via control commands
  • WebOS AXION Interface for full matrix control, scalable to mobile devices
  • Front panel screen for basic configuration without PC or network connection

    • General Information

    Name:AV Pro Edge AC-AXION-4 AXION Series 4x4 HDMI Matrix Switcher
    Category:AV Pro Edge, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
    UPC Code:850015330117
    Country of Origin:China. Country of origin is subject to change.
