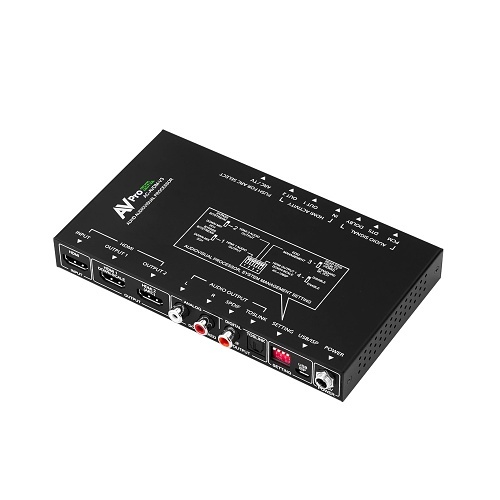

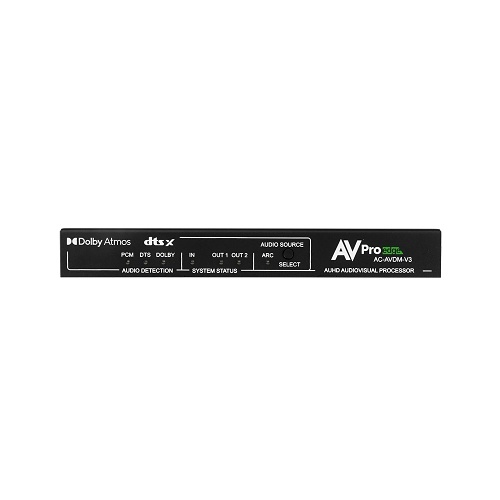

AV Pro Edge AC-AVDM-V3 18Gbps HDMI 8-Channel Audio Downmixer

AC-AVDM-V3 | 8A-ACAVDMV3

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

This device is a 4K UHD HDMI audio downmixer that supports high bandwidth video transmission of 18Gbps and simultaneous extraction and splitting of audio signals to digital and analog outputs. It handles Dolby Atmos and DTS-HD formats up to 7.1 channels, downmixing them to stereo (LPCM 2.0) across HDMI, S/PDIF, and analog RCA connections, while supporting audio sampling rates up to 192 kHz. Featuring 4K UHD resolution support at 60Hz (YUV 4:4:4, 8-bit) on both HDMI input and output, it can also downscale 4K sources for compatibility with older displays. The device includes audio return channel (ARC) functionality for extracting local smart TV app audio and supports comprehensive HDR formats including HDR10, Dolby Vision, and HLG. EDID management capabilities allow for immediate reading and application of display EDIDs to inputs, facilitating smooth integration with AV systems.

Main Features

  • Supports 18Gbps bandwidth for 4K UHD video transmission
  • Includes Dolby Atmos and DTS-HD stereo audio downmixing
  • Downmixes Dolby Audio & DTS-HD formats up to 7.1 to LPCM 2.0 stereo

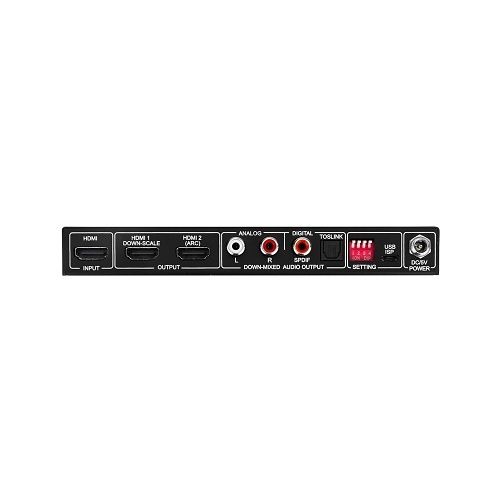

  • Outputs audio via HDMI, S/PDIF optical/coaxial, and analog RCA
  • Supports audio sampling rates up to 192 kHz
  • Supports 4K@60Hz (YUV 4:4:4, 8-bit) on input and output HDMI ports
  • Supports ARC audio extraction and output
  • Supports 4K downscaling on HDMI output 1
  • Compatible with HDR formats including HDR10, HDR10+, Dolby Vision, HLG, BBC, NHK
  • EDID management with preloaded and display-read EDIDs

    • General Information

    Name:AV Pro Edge AC-AVDM-V3 18Gbps HDMI 8-Channel Audio Downmixer
    Category:AV Pro Edge, Pro AV, Commercial Audio, Pro Audio Mixers
    UPC Code:810108231509
    Country of Origin:China. Country of origin is subject to change.
