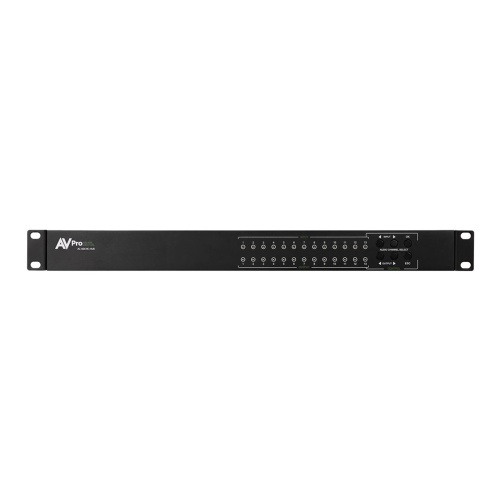

Image of 8A-ACAEXRCHU
Shop all AV Pro Edge

AV Pro Edge AC-AEX-RC-HUB Audio Extension Hub with RS-232 and Control Integration

AC-AEX-RC-HUB|8A-ACAEXRCHU
Shop all AV Pro Edge

AV Pro Edge AC-AEX-RC-HUB Audio Extension Hub with RS-232 and Control Integration

AC-AEX-RC-HUB|8A-ACAEXRCHU

Sign In for Dealer Pricing

Become an ADI Customer

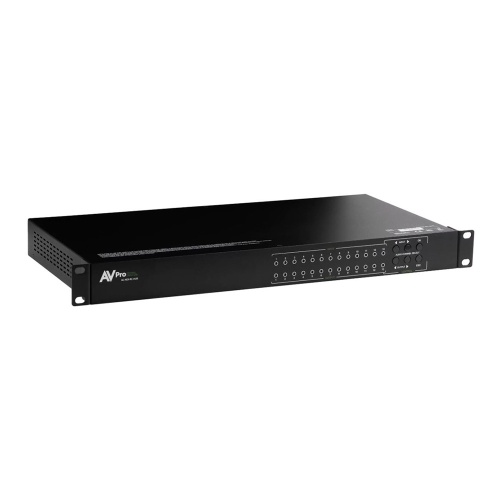

Image of 8A-ACAEXRCHU
AV Pro Edge

AV Pro Edge AC-AEX-RC-HUB Audio Extension Hub with RS-232 and Control Integration

AC-AEX-RC-HUB | 8A-ACAEXRCHU

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AVPro Edge AC-AEX-RC-HUB is an audio matrix switching hub designed to centralize and distribute multiple audio sources efficiently. It supports 12 audio inputs and outputs, including eight inputs utilizing Power over Cable (PoC) Ethernet category cable for long-distance audio transmission up to 130 meters with Shielded Twisted Pair. The hub outputs 2-channel PCM stereo via Toslink and analog RCA connectors simultaneously, and includes seven pre-set EQ curves with adjustable volume and balance for tailored audio. Compatible with third-party control systems like Control 4 and Crestron, it integrates easily while expanding audio zones, including extending audio capabilities of video matrices. The package includes a 12V/2A locking power supply, rack mounting brackets, rubber feet, and a grounding wire.

Main Features

  • 12 total audio inputs including 8 with long-range Power over Cable (PoC) Ethernet extension
  • Requires AC-AEX-T transmitter for PoC input operation
  • Supports audio retrieval distances up to 100m with Unshielded Twisted Pair, 130m with Shielded
  • 12 audio outputs with simultaneous Toslink (2 CH PCM stereo) and analog RCA stereo signals
  • Includes 7 onboard pre-set EQ curves for sound shaping plus output volume and balance adjustment
  • Compatible with AVPro Edge GUI and API for integration with automation systems like Control4
  • Enables routing of TV audio from apps and ATSC tuners to architectural speakers via system
  • Expands audio output capacity of AVPro Edge video matrices by 12 zones
  • Includes 12V/2A locking power supply, three-pin terminal block, rack mounting brackets, rubber

    • General Information

    Name:AV Pro Edge AC-AEX-RC-HUB Audio Extension Hub with RS-232 and Control Integration
    Category:AV Pro Edge, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
    UPC Code:850015330988
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
    Installation Instructions
