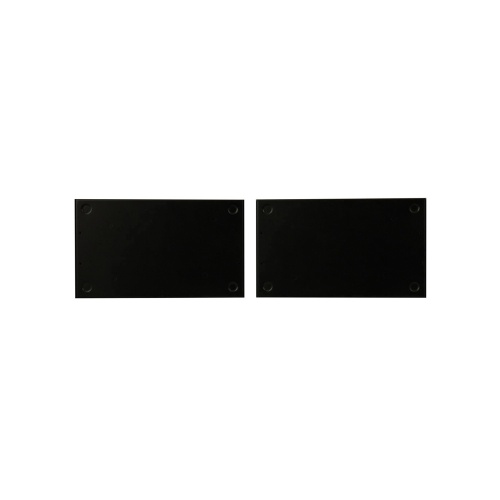

Image of 8A-AC4PLUKIT
Shop all AV Pro Edge

AV Pro Edge AC-EX40-444-PLUS-KIT 4K HDMI Extender Kit over HDBaseT with HDR Support

AC-EX40-444-PLUS-KIT|8A-AC4PLUKIT
Shop all AV Pro Edge

AV Pro Edge AC-EX40-444-PLUS-KIT 4K HDMI Extender Kit over HDBaseT with HDR Support

AC-EX40-444-PLUS-KIT|8A-AC4PLUKIT

Sign In for Dealer Pricing

Become an ADI Customer
AV Pro Edge

AV Pro Edge AC-EX40-444-PLUS-KIT 4K HDMI Extender Kit over HDBaseT with HDR Support

AC-EX40-444-PLUS-KIT | 8A-AC4PLUKIT

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The AC-EX40-444-PLUS-KIT by AVPro Edge is a 4K60 4:4:4 HDBaseT extender designed for high-bandwidth HDMI signal extension over single CAT (6a recommended) UTP/STP cables. It supports HDR formats such as HDR10+, HLG, and Dolby Vision, maintaining deep color and HDR metadata intact with ICT (Invisible Compression Technology) for virtually lossless transmission up to 18Gbps. This extender includes features like 4K to 1080p downscaling, audio return channel via HDMI or Toslink, USB 2.0 extension up to 250 Mbps, bi-directional RS232, IR transport protection, and cascading capability up to seven hops. It is CE certified, RoHS compliant, and equipped with comprehensive EDID management, test patterns, and robust ESD protection to ensure reliable communication and troubleshooting in complex AV installations.

Main Features

  • Supports 4K60 4:4:4 HDMI signals with HDR and 18Gbps bandwidth
  • Includes ICT (Invisible Compression Technology) for virtually lossless compression
  • Supports HDR, HDR10+, HLG, and Dolby Vision formats
  • Downscales 4K to 1080p for mixed systems
  • Audio return channel via HDMI or Toslink (ARC)
  • Built-in EDID management and emulation
  • Built-in 4K and HD test patterns for troubleshooting on Tx and Rx
  • Supports audio extraction via Toslink on Tx and input on Rx
  • USB 2.0 extension up to 250 Mbps with selectable host
  • Supports CEC pass-through and 3D video

    • General Information

    Name:AV Pro Edge AC-EX40-444-PLUS-KIT 4K HDMI Extender Kit over HDBaseT with HDR Support
    Category:AV Pro Edge, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
    UPC Code:850001710039
    Country of Origin:China. Country of origin is subject to change.
