AV Pro Edge AC-MXNET-10G-TCVR-PRO MXNet 10G Transceiver PRO with Dante Audio and USB Extension

AC-MXNET-10G-TCVR-PRO | 8A-10GTCVPRO

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

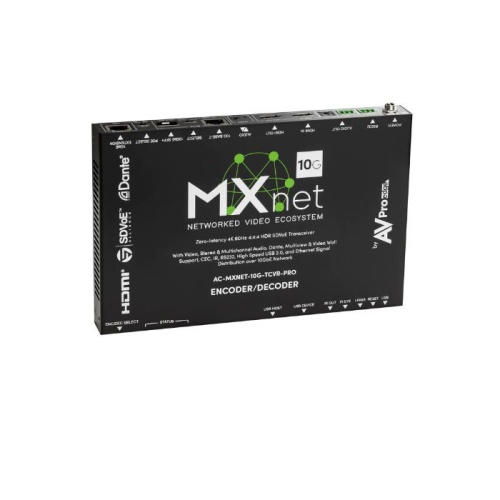

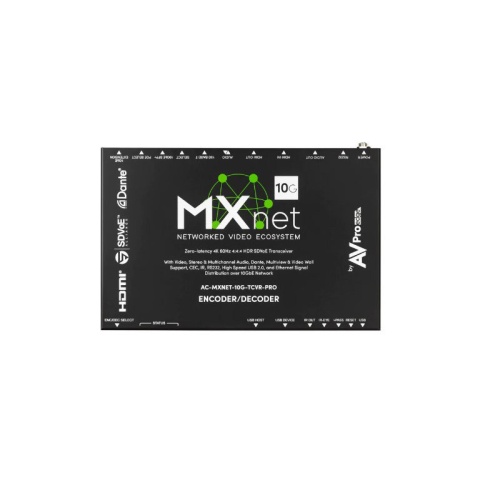

The AC-MXNET-10G-TCVR-PRO from AVPro Edge is a powerful AV-over-IP transceiver designed for heavy-duty multicast applications in the next generation 10G lineup. It integrates USB extension technology from Icron, supporting USB Low, Full, and High Speeds with up to 480Mbps throughput and compatibility for up to 31 USB devices including hubs. This device supports extended ranges of up to 100 meters over Cat5e cable and up to 10 kilometers over single-mode fiber, with driver-free plug and play for Windows, Mac OS, and Linux. Additionally, it includes Audinate's Dante platform which delivers lossless 24-bit or 32-bit audio at sample rates from 44.1kHz to 192kHz with ultra-low latency under 1ms and supports up to 512 channels per device for professional audio distribution.

Main Features

  • Supports USB Low, Full and High Speeds up to 480Mbps throughput
  • Supports up to 31 USB devices including hubs
  • Maximum range Cat5e up to 100 meters, Fiber up to 500m multimode and 10km single-mode
  • Driverless true plug and play compatible with Windows, Mac OS and Linux
  • 100% lossless, compression-free audio
  • Supports sample rates from 44.1kHz to 192kHz, 24-bit and 32-bit audio
  • Ultra-low latency less than 1ms with sub-microsecond synchronization
  • High channel capacity up to 512 x 512 channels 48kHz / 24-bit
  • Includes ExtremeUSB technology for USB extension beyond 5 meter limitation with precise timing
  • Uses Audinate Dante platform providing software defined signal flow and routing

    • General Information

    Name:AV Pro Edge AC-MXNET-10G-TCVR-PRO MXNet 10G Transceiver PRO with Dante Audio and USB Extension
    Category:AV Pro Edge, Data Comm & Networking, Network Adapters, Media Converters
    UPC Code:810108230267
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
