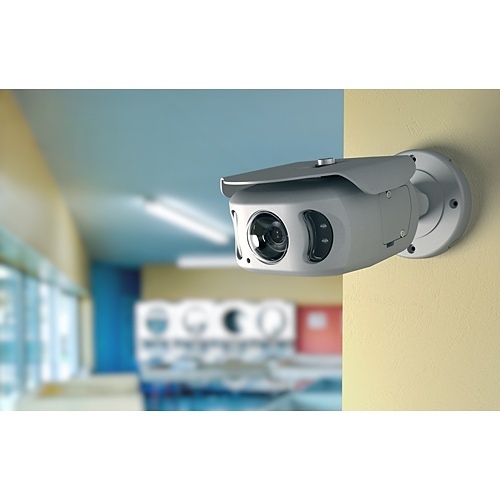

Digital Watchdog DWC-XSBC08BIC1 MEGApix 8MP Ai CaaS 4K Bullet IP Camera with Ultra-Wide Fixed Lens and IR

DWC-XSBC08BIC1

6K-XSBC8BIC1

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All Digital Watchdog

Digital Watchdog DWC-XSBC08BIC1 MEGApix 8MP Ai CaaS 4K Bullet IP Camera with Ultra-Wide Fixed Lens and IR

DWC-XSBC08BIC1 | 6K-XSBC8BIC1

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

This MEGApix Ai CaaS all-in-one IP camera provides 4K resolution at real-time 30fps with edge Ai and DW Spectrum IPVMS server installed and licensed on the camera. No additional server hardware is required. The camera’s ultra-wide view lens offers edge-to-edge image clarity, ideal for wide-area situational awareness.

Main Features

Server-less Deployment; No need for external servers, DW Spectrum is pre-installed, simplifying setup and reducing infrastructure costs

Edge-Based AI Analytics; Real-time object detection and classification directly on the device, minimizing bandwidth usage and improving response times

High-Quality Imaging; 4K resolution with a 2.3mm ultra-wide lens ensures sharp, expansive coverage for critical surveillance areas

Built-in Storage; 1TB onboard storage supports up to 90-days of retention, enabling long-term recording without additional hardware

Remote Access and Management; DW Cloud integration allows secure remote monitoring and management from anywhere

Rugged Reliability; IP67/IK9-rated housing, Smart IR for night vision, and cold-start capability down to -40°F ensure performance in harsh environments

Compliance Ready; NDAA/TAA compliance makes it suitable for government and enterprise installations

General Information

Name: Digital Watchdog DWC-XSBC08BIC1 MEGApix 8MP Ai CaaS 4K Bullet IP Camera with Ultra-Wide Fixed Lens and IR

Category: Digital Watchdog, Video Surveillance, IP Cameras, Bullet Cameras

UPC Code: 812226039463

Country of Origin: Korea, Republic of. Country of origin is subject to change.

Specifications

: ADI Part Number 6K-XSBC8BIC1 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-XSBC08BIC1 Product Line MEGApix Ai CloudCam Product Model DWC-XSBC08BiC1 Product Name MEGApix Ai CaaS 4K bullet edge IP camera with ultra-wide fixed lens, IR and an AI engine Product Series X - Class Product Type IP Camera Supported Network Protocols IPv4

: American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 8MP Field of View Horizontal, Vertical Illumination Distance 100' Lens Type Fixed Material Aluminum Die-cast Maximum Frame Rate 30fps Motion Detection Yes Night Vision Yes Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, H.265

: Image Sensor Type CMOS Wide Dynamic Range Yes

: Ingress Protection Rating IP67

: Image Sensor Size 1/1.8" Maximum Video Resolution 2592 x 1944

: Maximum Operating Temperature 122°F Minimum Operating Temperature -40°F Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -40-122°F

: Longest Shutter Speed 1/15 Second Minimum Illumination 0.29 lux (color) Shortest Shutter Speed Off, x10, x2, x3, x5, x6, x7.5

: Aspect Ratio 4:3

: Focal Length 2.3mm Focus Modes Auto, Manual Lens Included Yes Maximum Focal Length 2.3mm

: License Quantity 1

: Network Technology 1000 Base-T Ethernet

: ADI Part Number Replaces 6K-PVF5M1TWC, 6K-PVF5M1WC1 Model Number Replaces DWC-PVF5M1TIRWC1T, DWC-PVF5M1TIRWC5

: Depth 3.8" Durability Weather Resistant Form Factor Bullet, Panoramic Height 5.03" Weight 2.13lb Width 8.75"

: Frequency 50 Hz Input Voltage 12V DC

: Amperage 1.83A

: Limited Warranty 5-Year

: Impact Protection Rating IK09
