APC AR8765 Electric Vertical Cable Manager

AR8765 | 2G-AR8765

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

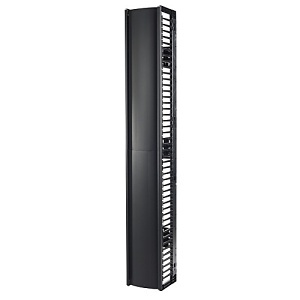

This 12" wide, high capacity vertical cable manager for 2 and 4 Post open frame racks features a single-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications.

Main Features

Fiber management-Supports toolless installation of AR8444 fiber spools

Cable protection-Smooth plastic fingers provide proper bend radius

High capacity cable finger design-Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel

Horizontal cable routing front-to-back-Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK

Cable management tie-off backplate for accessories-Backplates feature multiple mounting holes for toolless accessory installation of cable management accessories such as hook-and-loop cable managers and straps (AR8621) and fiber spools for excess fiber slack management (AR8444)

Dual-hinging full length door-Door installs quickly without tools and hinges from the left or right to allow access inside the vertical cable manager channel

Unassembled for rapid assembly onsite-Vertical cable managers are packaged unassembled and designed with a simple snap together design for rapid onsite assembly and installation

General Information

Name: APC AR8765 Electric Vertical Cable Manager

Category: APC by Schneider Electric, Data Comm & Networking, Racks & Enclosures, Cable Managers

UPC Code: 731304300908

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number 2G-AR8765 Brand Name APC by Schneider Electric Manufacturer Part Number AR8765 Package Length 10.7 Packaged Quantity 1 Product Type Cable Manager

: Material Plastic

: Color Black Depth 11.30" Height 84.02" Weight 20.35lb Width 12.01"

: Limited Warranty 2-Year

: Country of Origin US Environmental Certification REACH Environmentally Friendly Yes Package Contents Door, Installation Guide, Mounting hardware

Documents and Resources

Download All Documents

Product Data Sheet

Manufacturer Brochure

Certification / Declaration

Additional Resources
