Product Overview
This robust camera delivers excellent image quality in 8 MP. It can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. And Lightfinder 2.0, Forensic WDR, and OptimizedIR deliver true colors and great detail regardless of light conditions. Scene profiles can be automatically optimized for specific scenarios. PoE and redundant DC power ensure flexible installation. With a DLPU, you can run advanced features and powerful analytics on the edge. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
General Information

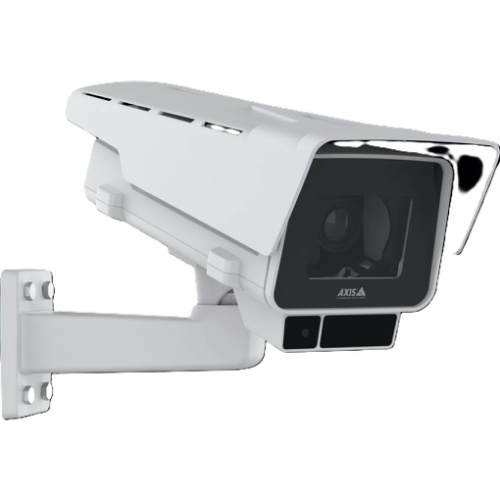

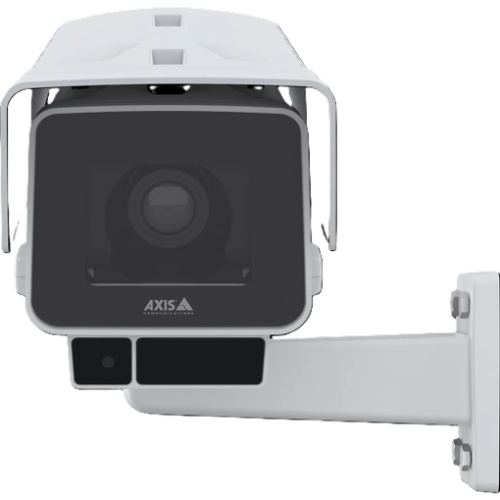

Name : AXIS P1388-LE 8MP Outdoor Box Camera , Axis Communications
Category : Box Cameras
UPC Code : 7331021082717
Country of Origin : Poland. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-02738001
Brand Name : AXIS Communications
Manufacturer Part Number : 02738-001
Product Line : P
Product Name : AXIS P1388-LE
Product Series : P13
Product Type : Fixed cameras
Supported Network Protocols : IPv6 USGv6, NIST SP500-267
Technical Information
Aperture : f/1.5
Effective Camera Resolution : 8MP
Field of View : Horizontal, Vertical
Lens Mount Type : i-CS
Lens Type : Varifocal
Maximum Aperture : f/1.5
Maximum Frame Rate : 60fps
Minimum Focal Length : 3.9mm
Night Vision : Yes
Video Formats : H.264, H.265, MJPEG, MPEG-4
Camera
Image Sensor Type : CMOS
Night Vision Distance : 164.04 ft
Wide Dynamic Range : Yes
Certifications
Ingress Protection Rating : IP66, IP67
TAA Compliant : Yes
Display & Graphics
Image Sensor Size : 1/1.8"
Maximum Video Resolution : 3840 x 2160
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Minimum Operating Temperature : -40°F (-40°C)
Operating Humidity : 1
Operating Temperature (T-T) : -40-104°F
Exposure
Minimum Illumination : 0.03 lux
Lens
Focal Length : 3.9-10mm
Maximum Focal Length : 10mm
Memory
Memory Card Supported : Yes
Others
ADI Part Number Replaces : Z4-01811001, Z4-01811031
Model Number Replaces : 01811-001, 01811-031, P1378-LE
Physical Characteristics
Color : White
Depth : 6.25"
Durability : Dustproof, Impact Resistant, Rain Resistant, Snow Resistant, Vandal Resistant, Waterproof
Form Factor : Box
Height : 6.54"
Package Type : Box
Weight : 5.42lb
Width : 10.68"
Power Description
Input Voltage : 10V DC, 28V DC
Maximum Power Consumption : 26W
Power over Ethernet (PoE) : Yes
Product Information
Mount Type : Wall Mount
Warranty
Limited Warranty : 5-Year
Miscellaneous
Certifications : CISPR 32 Class A, CISPR 35, EN 50121-3-2, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Certifications & Standards : ONVIF G, ONVIF M, ONVIF S, ONVIF T
Environmental Certification : EU RoHS, REACH, RoHS
Environmentally Friendly : Yes
Features : Audio Detection, Built-in IR LED, Day/Night, Electronic Image Stabilization, Gain Control, Motion Detection, Multi-view Stream, PTZ, SD Card Local Storage, Video Management System, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Package Contents : AXIS TQ1003-E Wall Mount, Camera, Installation Guide, Owner authentication key, Terminal block connectors
