Product Overview
Designed for commercial vehicle, trucks, bus, and special equipment such as cranes and construction vehicle. The EX88 Series camera is purpose-built for mobile environments that are subject to constant vibration, temperature fluctuation and extreme climate conditions.
General Information

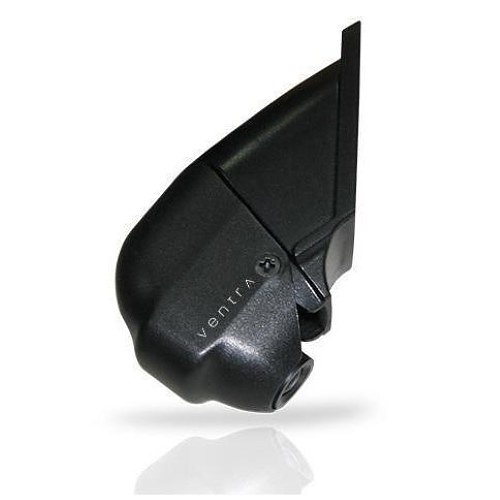

Name : Ventra EX88-XC10DS Slanted / Angled Windshield , Ventra
Category : Mobile & Vehicle Dash Cameras
UPC Code :
Specifications
General Information
ADI Part Number : QG-E88XC10DS
Brand Name : Ventra
Manufacturer Part Number : EX88-XC10DS
Technical Information
Effective Camera Resolution : 2MP
Field of View : Horizontal
Maximum Frame Rate : 30 fps
Minimum Focal Length : 3.6mm
Camera
Image Sensor Type : CMOS
Wide Dynamic Range : Yes
Display & Graphics
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 131°F
Minimum Operating Temperature : -4°F
Operating Humidity : 90%
Exposure
Minimum Illumination : 0.01 lux
Lens
Focal Length : 3.6mm
Maximum Focal Length : 3.6mm
Physical Characteristics
Depth : 2.15"
Height : 1.25"
Width : 3.93"
Power Description
Input Voltage : 12V DC
Miscellaneous
Features : 1080P Full HD Resolution, Adjustable camera angle to suit different windshields, Low profile with small footprint ideal for any vehicle, Sharp and vivid video quality
