Product Overview
EtherWAN's EX73900X series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with up to 12 gigabit Ethernet and 4 dual-rate 10 gigabit SFP+ ports, and the IEEE1588v2 Precision Time Protocol (PTP) that uses network packets and time stamps for network time synchronization. The EX73900X series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial.
General Information

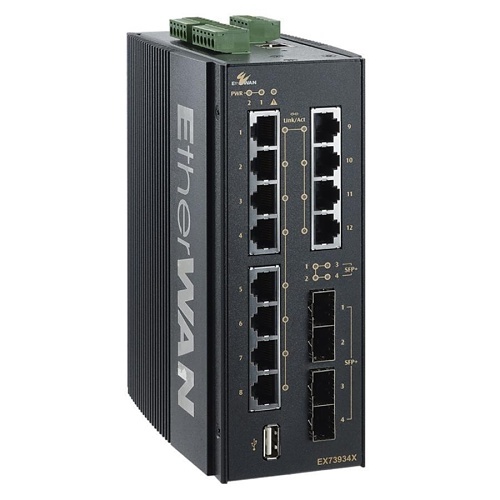

Name : EtherWAN EX73934X-0VB Hardened Managed LL3 Gigabit Ethernet Switch , EtherWAN
Category : Network Switches
UPC Code :
Specifications
General Information
ADI Part Number : ET-73934X0VB
Brand Name : EtherWAN
Manufacturer Part Number : EX73934X-0VB
Technical Information
Material : Aluminum
Power Consumption : 20W
Management & Protocols
Manageable : Yes
Network & Communication
Networking Standards : IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical Characteristics
Depth : 5.5"
Height : 6.7"
Width : 2.8"
Power Description
Input Voltage : 12-48V DC
Product Information
Mount Type : DIN Rail Mount
Warranty
Limited Warranty : Lifetime Warranty
Miscellaneous
Environmental Certification : FCC, UL
Environmentally Friendly : Yes
Features : Dual Rate 1G/10G SFP+ uplinks for fiber connections, Integrated with 2 DIs (Digital Input) and 2 Relay Output, Supports static routes, RIP V1/V2, and VRRP
Package Contents : 1 Console Cable, Ethernet Switch, Mounting brackets, screws, Quick install guide
