Product Overview
5000VA Line-interactive UPS for server, network and telecommunications equipment with internal batteries requires 3U installed. Accepts 208V nominal input voltage. Simultaneous 208V and 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. Eleven output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and slot for Network Management Card options. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. Integrated eight-bank switched PDU. Three-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack-mounting accessories included; 2-9USTAND and 2POSTRMKITHD accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
General Information

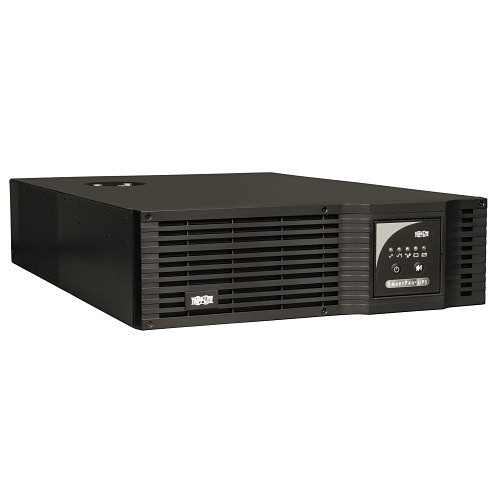

Name : Eaton Tripp Lite SMART5000XFMRXL SmartPro Line-Interactive Sine Wave UPS, 208 and 120V 5kVA 3.75kW, 3U, Extended Run, Network Card Options, USB, DB9 , Eaton Tripp Lite
Category : UPS
UPC Code : 037332121462
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-500XFMRXL
Brand Name : Eaton Tripp Lite
Manufacturer Part Number : SMART5000XFMRXL
Product Type : Line-interactive UPS
Technical Information
Receptacle Detail : 1 x NEMA L6-30R, 2 x NEMA L6-20R, 8 x NEMA 5-15/20R
Battery Information
Battery Characteristics : Maintenance-free
Battery Chemistry : Sealed Lead Acid (SLA)
Management
Network Management : SNMP Manageable
Physical Characteristics
Depth : 25"
Form Factor : Tower
Width : 18"
Power Description
Input Voltage : 208V
Software
Software Included : Yes
Miscellaneous
Country of Origin : TW
Package Contents : <ul><li>SMART 5000XFMRXL UPS System</li><li>USB & DB9 Serial Cabling</li><li>Mounting hardware for 4-post rackmount installation</li><li>Instruction manual</li></ul>
